Las puertas de garaje se fabrican una vez realizado el pedido a través de la página web. Puertas de garaje - tiempo de producción 4 semanas

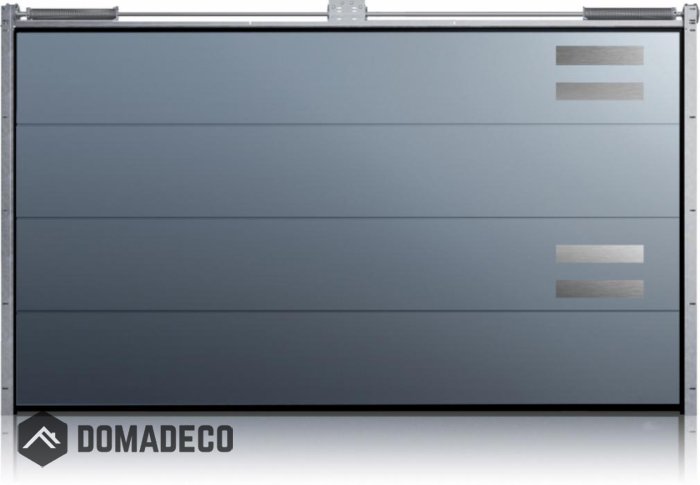

Las puertas seccionales son la solución más cómoda y conveniente para su garaje. Nuestras puertas son puertas cálidas con el coeficiente U similar al de las ventanas multicámaras usadas para construcción para ahorro energético. Los paneles rellenos con espuma de poliuretano producidos en nuestra propia fábrica y los sistemas de sellos contribuyen a este bajo coeficiente.
Sistema de resorte de torsión diseñado para 20,000 ciclos.
Construcción Galvanizada
Paneel aus rostfreiem Stahl: 40 mm Dicke, gefüllt mit PUR-Polyurethanschaum
Coeficiente de transferencia de calor del panel. Hasta = 0.48 W / m2 K
Índice de reducción de sonido: Rc = 23 dB
Rodillos con rodamientos
Das Garagentor-Set umfasst: - Handgriff und Schlüsselschloss (manuelles Tor) - Lichtschranken (automatisches Tor) - Bolzen, - Federbruchschutz, - Fingerklemmschutzplatte
tamaño mínimo de altura libre: 120 mm (3 en la imagen) tamaño mínimo del lado izquierdo: 90 mm (2 en la imagen) tamaño mínimo del lado derecho: 90 mm (2 en la imagen) tamaño mínimo de la trastienda: 2675 mm (4 en la imagen)
Agujero de pared requerido: ancho de 2100mm a 5500mm altura de 2000mm a 3000mm
When in use, sectional and roller doors do not require any free space in front of the garage. The door blade rises vertically and hides under the ceiling or rolls up into a box . Both door types are recommended for garages opening directly onto the street and where there is limited space in front of the garage. leaf rises up and out in front of a building. Therefore, a car cannot be parked directly in front of the door, but at a distance of approximately 1.5 m. If the car is parked closer, the door cannot be opened. , on the other hand, opens like an ordinary door and requires free space in front of the garage allowing free movement of the door leaves. In designing a garage, it should be ensured that the entrance opening size is sufficient to allow comfortable entry for a car. A standard size garage door constitutes an economical solution, and is often available on the spot. If it is not possible to use a standard door in the existing opening, we recommend installing custom-made doors fitted precisely to the existing opening
Form and function
Sectional garage doors are manufactured using 40 mm panel garage doors. All our panels facility using state-of-the-art technological lines which ensure high quality and repeatability at each stage of the manufacturing process. High technical parameters and reliable corrosion protection are obtained thanks to the use of high grade, galvanized steel with paint or film coating. The stiff polyurethane foam core ensures optimum strength for the panels and improves their thermal insulation. Special solutions, such as the 5-layer sheet bending system ensures stable fastening of elements, which further increases the strength of our design.
YOU FEEL SECURE
Our up-and-over doors are safe to use, and certified in accordance with the requirements of European Standard EN 13241-1. The solutions applied in these doors guarantee safety for yourself and your family: an overload switch, photocells, spring casings, the shape of guides and guide rolls with bearings. A two-point, latch-type door bolting system makes certain that the door is locked.
AUTOMATION SYSTEMS
PROXIMA G1000L drive is a modern, safe and durable garage gate drive of unprecedented possibilities. It has a high driving torque of 1000 Nm, which ensures very quick lifting. The set includes one rail with emergency lock for a carriage and chain drive transmission.
ADDITIONAL PARAMETERS:
Self-locking, fully metallic worm gear in a metal housing, integrated with the engine
Hall Effect rotation sensor - control of gate position with sub-millimetre precision, also in case of power outage,
Precise overload sensor, reversing the gate movement,
Cooperation with a photocell that increases safety,
Nine-stage overload sensitivity adjustment,
PB wire input that controls the drive step by step,
LED type, illuminated for 3 min, ambient lighting,
Automatic closing of fully opened gate after 1-9 minutes,
Fully closed gate may require subsequent pressing of two remote buttons to be opened
Protection against accidental opening using a remote
Protection against overheating and overload, t Soft start and stop of the gate.
